HDG Traffic Signals Steel Poles

Traffic Signal pole usually application to the city main road,the function is remind someone,car, avoid damage.

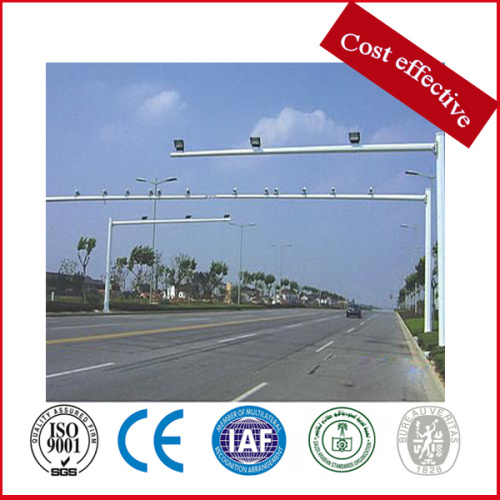

accordance with the road condition the traffic pole structure was different,so the traffic pole have:cantilever arm,single arm,double arm etc.

कंपनी की जानकारी

Yixing Futao Metal Structural Unit Co. Ltd is located in No.8 Nanxin East Road, Heqiao Town, Yixing City, Jiangsu Province.Equipped with a series of numerical control conveyor systems of flattening, cutting, folding and auto-welding, we could manufacture high & medium mast lighting, road lighting power poles, sight lamps, courtyard lamps, lawn lamps, traffic signal poles, monitor poles, microwave communication poles etc.Moreover,Our manufacturing process has been ISO9001 certified.Therefore,we own a large-sized numerical control hydraulic pressure folding machine with once folding length 13,000mm and the thickness 2-20mm.

we have been honored with the title of the AAA grade certificate of goodwill".In 2015 we have owned 27 Transactions for more than US $1,300,000 in the latest 12 months.

Traffic Signal Pole Product Description

Type Straight Pole ,Tensile Pole ,Turn Pole

Signal Pole,Monitor Pole,Sign Post Suit for Signal Light

Shape Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Torlance of dimenstion +- 2%

Power 10 KV ~550 KV

Safety Factor Safety factor for conducting wine : 8

Safety factor for grounding wine : 8

Design Load in Kg 300~ 1000 Kg appliced to 50cm from the to pole

Marks Nane palte through rivert or glue ,engrave ,emboss as per customer requirement

Surface treatment Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Joint of Poles Insert mode,innerflange mode,face to face joint mode .

Design of pole Against earthquake of 8 grade

Wind Speed 160 Km/Hour . 30 m /s

Minimum yield strength 355 mpa

Minimum ultimate tensile strength 490 mpa

Max ultimate tensile strength 620 mpa

Standard ISO 9001

Length of per section Within 14m once forming without slip joint

Welding We has past flaw testing.Internal and external double welding makes the welding beautiful in shape

Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness 1 mm to 30 mm

Steel Pole,Octagonal Pole Production Process

Production Process material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Packing &Shipping

Packages Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data.
