Galvanized Outdoor High Mast Steel Light Poles

कंपनी की जानकारी

Yixing Futao Metal Structural Unit Co. Ltd is located in No.8 Nanxin East Road, Heqiao Town, Yixing City, Jiangsu Province.Equipped with a series of numerical control conveyor systems of flattening, cutting, folding and auto-welding, we could manufacture high & medium mast lighting, road lighting power poles, sight lamps, courtyard lamps, lawn lamps, traffic signal poles, monitor poles, microwave communication poles etc.Moreover,Our manufacturing process has been ISO9001 certified.Therefore,we own a large-sized numerical control hydraulic pressure folding machine with once folding length 13,000mm and the thickness 2-20mm.

we have been honored with the title of the AAA grade certificate of goodwill".In 2015 we have owned 27 Transactions for more than US $1,300,000 in the latest 12 months.

उत्पाद वर्णन

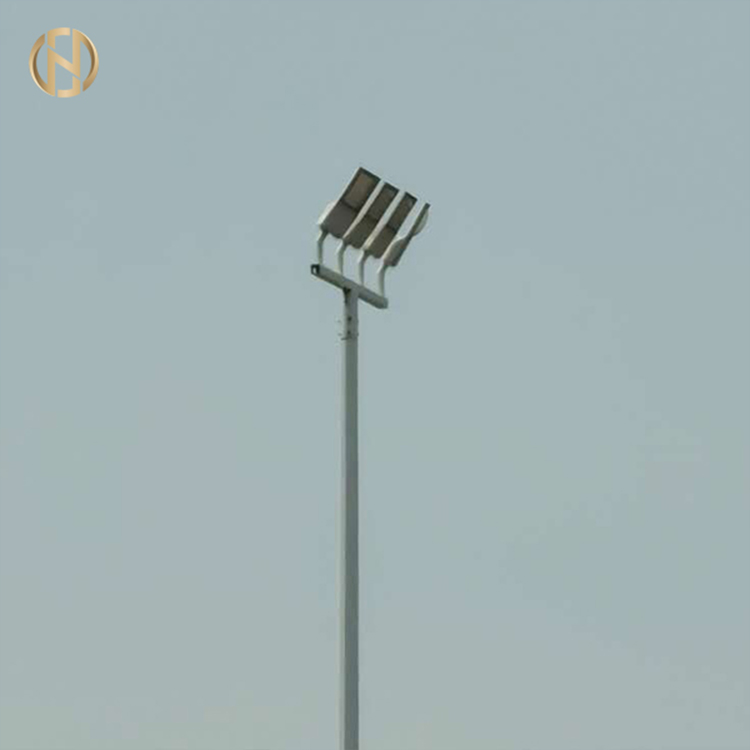

High Mast Lighting,Round Taper Steel Pole Height:20 m to 60 m

Suit for:Airport ,seaport,plaza,stadium ,square,highway,street way etc

Shape:Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material:Usually Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490, to ST52-

Torlance of dimenstion:+- 2%

Light panel:Various figure of slection ,material with hot dip galvanization steel frame ,stainless steel ,special aluminum plate

Light Extension:Up to 30 000 m²

Lamp &Luminaire:Projector generally to be applied with safety grade IP65

Luminaire with high pressure sodium lamp of long lift and high lighting efficiency ,or metal halide lamp with high CRI

Lifting system:Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute

Euqiped e;ectromagnetism brake and break –proof device,manual opeation applied under power cut

Electric appliance control device:Electric appliance box to be be the holde of the pole ,lifting operation could be 5 meter away from the pole through wire

Time control and light control could be equipped to realize full-load lighting mode and part lighitng mode

Joint of Poles:Insert mode,innerflange mode,face to face joint mode .

Design of pole:Against earthquake of 8 grade

Wind Speed:160 Km/Hour

Minimum yield strength:355 mpa

Minimum ultimate tensile strength:490 mpa

Standard:ISO 9001

Length of per section:Within 14m once forming without slip joint

Welding:We has past flaw testing.Internal and external double welding makes the welding beautiful in shape

Welding Standard :AWS ( American Welding Society ) D 1.1

Thickness:1 mm to 30 mm

Packaging & Shipping

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required , each 40HC or OT can loading how many pcs will calculation base on the client actually specification and data .

.

1. Payment:

(1)Telegraphic Transfer:30% advance payment, balance before shipment

(2)Telegraphic Transfer:30% advance payment, balance against copy of documents

(3)Letter of Credit: at sight

2. Lead Time: 2 weeks after confirmed order

3. Delivery way: by sea

उत्पादन की प्रक्रिया

Polygonal Steel Pole Production Process:Rew material test → Cuttingj →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages

Production process and Finished products
